OPC UA Server

We integrate and service not only general equipment and systems, but also legacy systems and individual equipment with non-standard protocols, according to international industrial standards.

hub
Industrial Standard Interface

OPC UA Server

The DavinSoft OPC UA Server is a system that collects real-time signals from control devices and gateways such as DCS and PLC, and delivers industrially standardized data to OPC UA client systems that adhere to the OPC UA specifications. Additionally, it fully supports the latest security standards required by the OPC Foundation.

The DavinSoft OPC UA Server is a product that has received official certification from the OPC Foundation.

OPC Foundation Product Certification Lookup Link

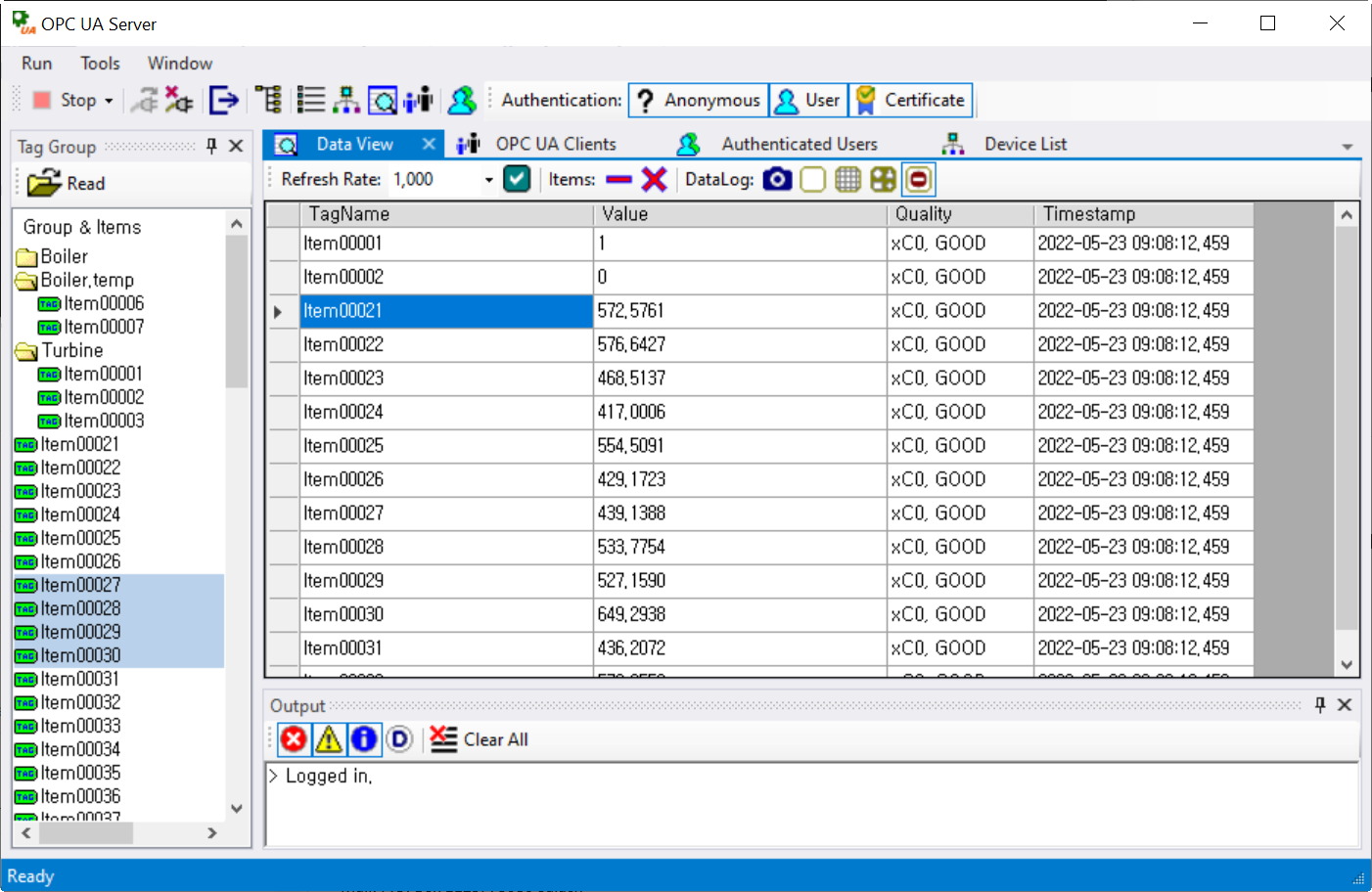

OPC UA Server Interface: An intuitive user screen for real-time data monitoring and management. Through the tag group tree structure on the left and the data view on the right, you can efficiently manage and monitor various equipment items such as boilers and turbines. The authentication options and toolbar at the top allow easy access to security settings and various functions, maximizing the efficiency of industrial data communication.

bolt

Key Features

Support for Various Drivers

  • Standard Drivers: MODBUS RTU/TCP, OPC UA/DA, FanucCNC, FENET
  • Custom Drivers: Support for non-standard communication protocol devices
  • Data Standardization for Non-standard Devices

High Performance and Security

  • Data Processing Speed: 20ms (max)
  • Support for Various Security Policies and Modes
  • Authentication Types: Anonymous, User Name, Certificate

Certificate Generation Function

  • RSA Key Size: 512, 1024, 2048, 3072
  • Digest Mode: SHA1, SHA256, SHA512
  • Private Key Encryption: Not Encrypted, AES128CBC, AES256CBC

Localization and Cost Efficiency

  • Proven Performance with Fully Domestic Software
  • Affordable Implementation Cost
  • Communication Connectivity with Older Equipment


thumb_up

Key Advantages

Fully Domestic Software

  • Stable Operation Guaranteed with Proven Performance
  • Cost-effectiveness Ensured with Affordable Implementation Costs
  • Rapid Issue Resolution with Local Technical Support

Support for Non-standard Device Drivers

  • Communication Connectivity Possible for Older Equipment in the Field that Does Not Support Standard Protocols
  • Easy Integration and Management by Standardizing Data from Various Devices
  • Protect Existing Equipment Investments and Ensure Connectivity with New Systems


Sentiment_Very_Dissatisfied

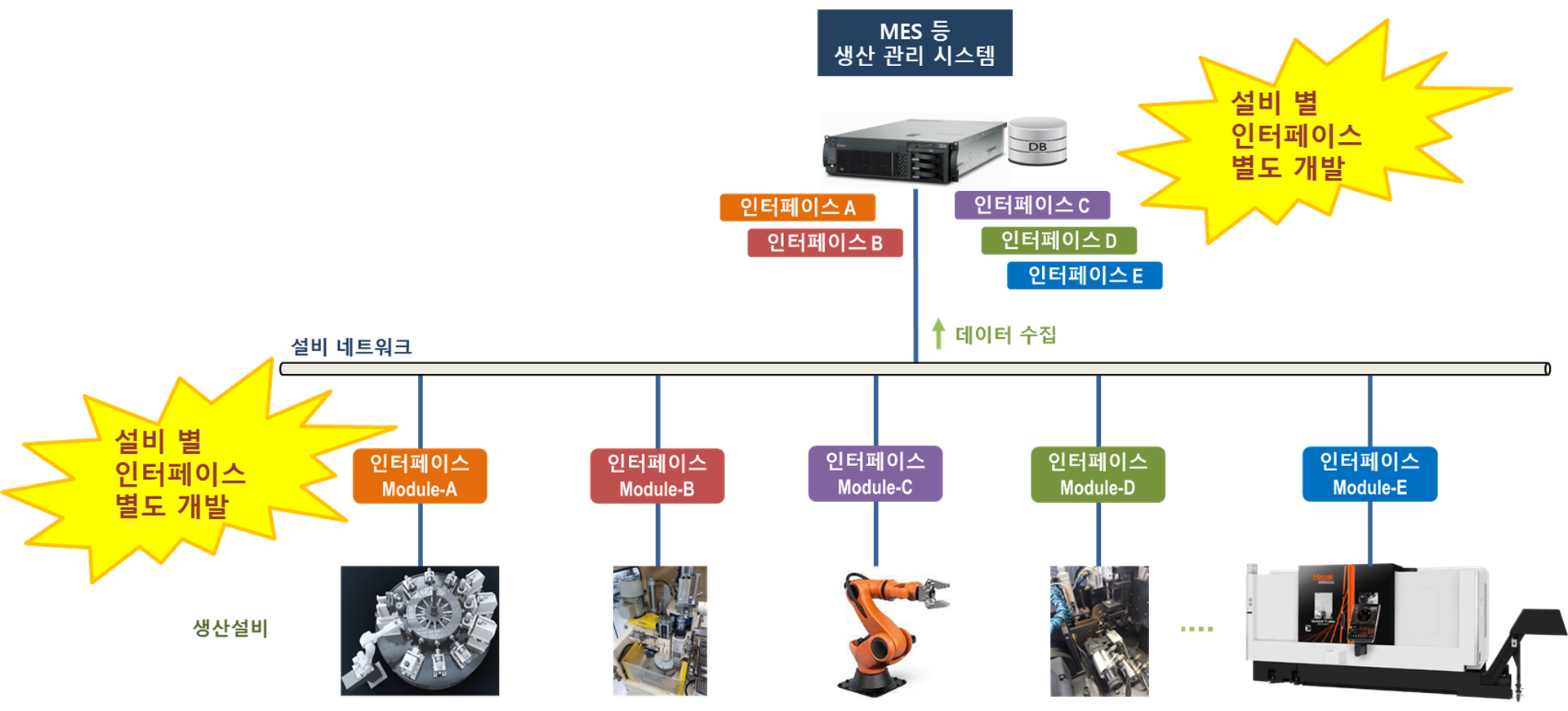

As-Is

Heterogeneous dedicated machines, processing machines, CNC, MCT, industrial robots, and other production and manufacturing equipment.

  • Industrial Non-standard Interface Support
  • Different Communication Protocol Interfaces for Each Equipment and Device
  • Costs Incurred During System Expansion/Upgrade
  • Excessive Maintenance Costs


emoji_emotions

To-Be

Standardization of communication data interfaces for heterogeneous dedicated machines, processing machines, CNC, MCT, industrial robots, and other production and manufacturing equipment.

  • Industrial Standard Interface Support
  • Standardization of All Equipment Interfaces Regardless of Manufacturer
  • Flexibility in System Expansion
  • Standardized Maintenance


license

Certification Information

The DavinSoft OPC UA Server is a product that has received official certification from the OPC Foundation.

OPC 인증서

  • OPC UA Certification Obtained (May 2022)
  • Certification Authority: OPC Foundation
  • The only OPC UA-certified product in Korea.

OPC Foundation Product Certification Lookup Link
